Simple thematic Harris diagram Legend of Harris diagram

Stratify - thematic Harris diagram

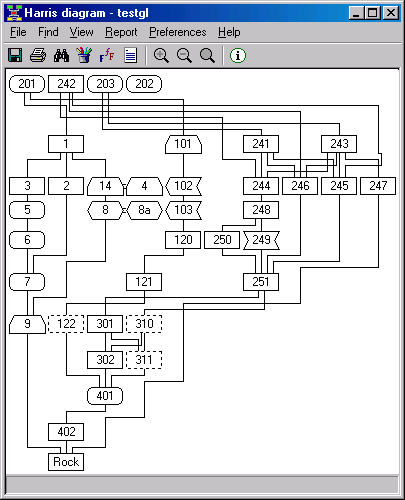

The "earlier than" and "later than" relationships are depicted as orthogonal lines that connect the appropriate context boxes. The layout ensures that any two horizontal relationship line segments do not share a point and that any two vertical line segments never touch.

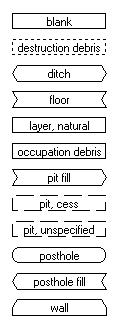

The thematic display in this example is based on the field Unit type, which determines the border style of the boxes. The legend to the right was created by Stratify as well. The SVG example shows a thematic display which is based on two data fields, one of them controls the border style, the other one the background colour of the box.
